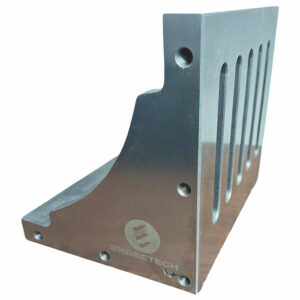

Angle Plate AP4 for CNC Workholding

The Angle Plate AP4 is catalogue product 44 in Engeetech’s current angle plate series. Brochure-listed reference data includes Width 250 mm, Full length 300 mm, Full height 275 mm. Share the machine, component and application details with the technical team to confirm suitability and quotation requirements.

Angle Plate AP4 is part of Engeetech’s angle plate series for angular positioning and auxiliary workholding. Technical selection should be confirmed against the machine interface, component geometry, required opening and the intended machining process.

Technical reference: Engeetech Final Brochure, catalogue product 44. Contact the Engeetech team for current availability and quotation support.

Angle Plate Series selection notes

Angle Plate series configuration
Cast iron construction listed in the brochure
0.01 mm accuracy specification listed in the brochure

Catalogue Number	44
Series	Angle Plate Series
Reference	Engeetech Final Brochure
Width	250 mm
Full Length	300 mm
Full Height	275 mm
Accuracy	0.01 mm
Material	Cast Iron
Weight	19.1 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

Angular machining setups
Milling and drilling support
Tool room fixture positioning
Inspection and setup work
