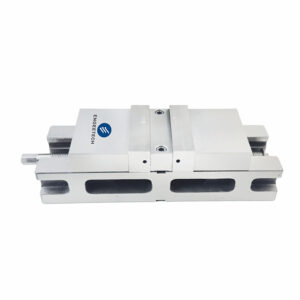

Double Station Vice DSC2 for CNC

Double Station Vice DSC2 for CNC Production Machining

The Double Station Vise DSC2 is catalogue product 33 in Engeetech’s current double station vise series. Brochure-listed reference data includes Base width 150 mm, Jaw width 150 mm, Opening Both 100. Share the machine, component and application details with the technical team to confirm suitability and quotation requirements.

Double Station Vise DSC2 is part of Engeetech’s double station vise series for two-position CNC milling and production workholding. Technical selection should be confirmed against the machine interface, component geometry, required opening and the intended machining process.

Technical reference: Engeetech Final Brochure, catalogue product 33. Contact the Engeetech team for current availability and quotation support.

Double Station Vise Series selection notes

Double Station Vise series configuration
Two opening values identified in the brochure
Ductile iron SG500/7 body with hardened jaw specification

Catalogue Number	33
Series	Double Station Vise Series
Reference	Engeetech Final Brochure
Base Width	150 mm
Jaw Width	150 mm
Opening	Both 100 mm
Full Length	570 mm
Full Height	127 mm
Bed Length	530 mm
Vise Bed Height	78 mm
Jaw Height	49 mm
Accuracy	0.02/100 mm
Material	Ductile iron SG500/7; hardened jaw HRC 50-52
Weight	36 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

CNC milling with two workholding positions
Production machining
Repeated component cycles
Operations where setup efficiency matters
