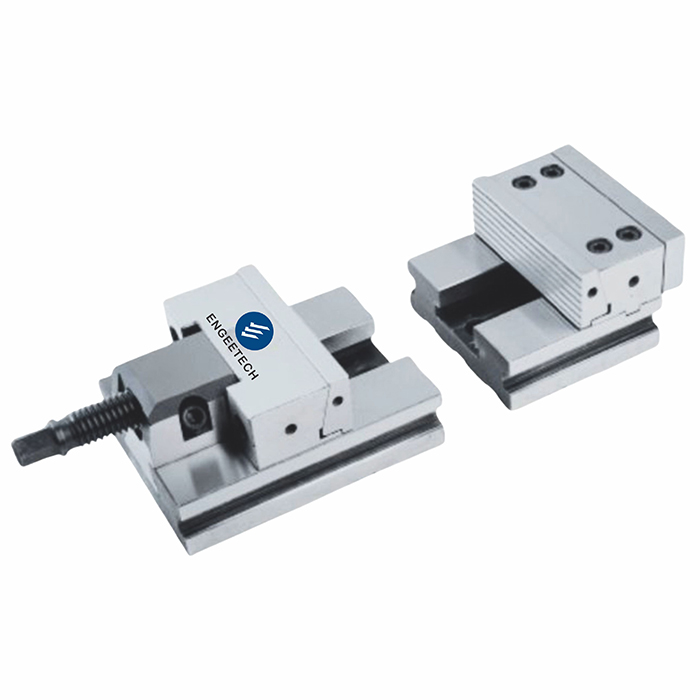

Precision Modular Split Vise PMSPL1

The Precision Modular Split Vise PMSPL1 is catalogue product 01 in Engeetech’s current modular vise series. Brochure-listed reference data includes Base width 150 mm, Jaw width 150 mm, Opening Limitless. Share the machine, component and application details with the technical team to confirm suitability and quotation requirements.

Precision Modular Split Vise PMSPL1 is part of Engeetech’s modular vise series for flexible CNC workholding and varied component setups. Technical selection should be confirmed against the machine interface, component geometry, required opening and the intended machining process.

Technical reference: Engeetech Final Brochure, catalogue product 01. Contact the Engeetech team for current availability and quotation support.

Modular Vise Series selection notes

Modular vise platform listed in the Engeetech brochure
Multiple size and opening options across the series
Brochure dimensions available for technical review

Catalogue Number	01
Series	Modular Vise Series
Reference	Engeetech Final Brochure
Base Width	150 mm
Jaw Width	150 mm
Opening	Limitless
Full Length	N/A
Full Height	99 mm
Bed Length	N/A
Vise Bed Height	50 mm
Jaw Height	49 mm
Accuracy	0.02/100 mm
Material	Hardened steel; body HRC 54-56
Weight	27 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

CNC milling and flexible production setups
Tool and die machining
Prototype and low-volume component work
Multi-operation workholding where setup changes are frequent
