Self Centering Vice SCS1 (catalogue model 36) has a 100 mm jaw width and 25-150 mm opening for CNC workholding. Share your machine and component details with Engeetech for technical quotation.

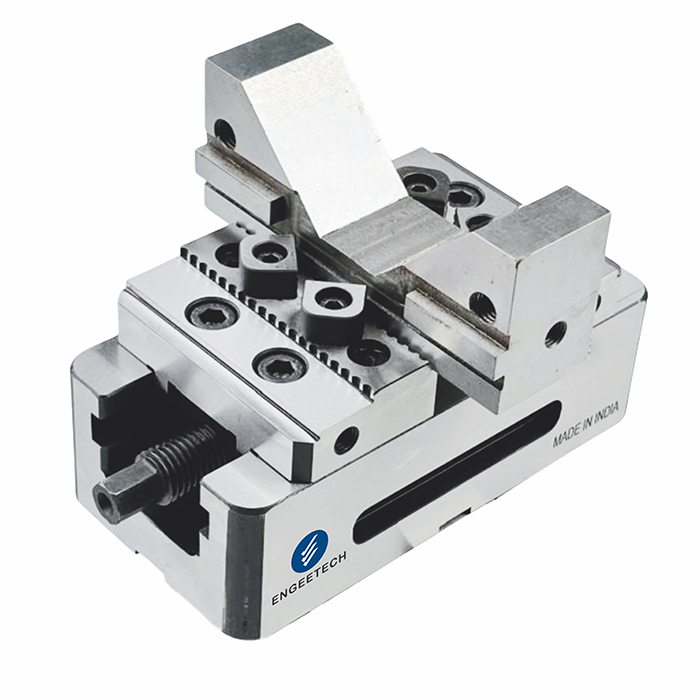

Self Centering Vice SCS1 (also listed as a self centering vise) is Engeetech catalogue model 36 for compact CNC workholding. It has a 100 mm jaw width and a 25-150 mm opening; confirm the machine interface, component geometry and setup requirements before quotation.

Use this self centering vise for CNC machining, repeated setups and centering work on small and medium components. Contact Engeetech with your machine and component details for technical selection and an RFQ.

Self Centering SCS Series selection notes

Self-centering platform listed in the Engeetech brochure
Brochure-listed jaw and opening options for technical review
Suitable selection depends on the component and machine setup

Catalogue Number	36
Series	Self-Centering Vise SCS Series
Reference	Engeetech Final Brochure
Base Width	100 mm
Jaw Width	100 mm
Opening	25-150 mm
Full Length	213 mm
Full Height	85 mm
Bed Length	195 mm
Vise Bed Height	60 mm
Jaw Height	25 mm
Accuracy	0.02/100 mm
Material	Hardened steel; body HRC 54-56

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

CNC milling and machining
Repeated component work
Small to medium component holding
Applications requiring controlled centering
