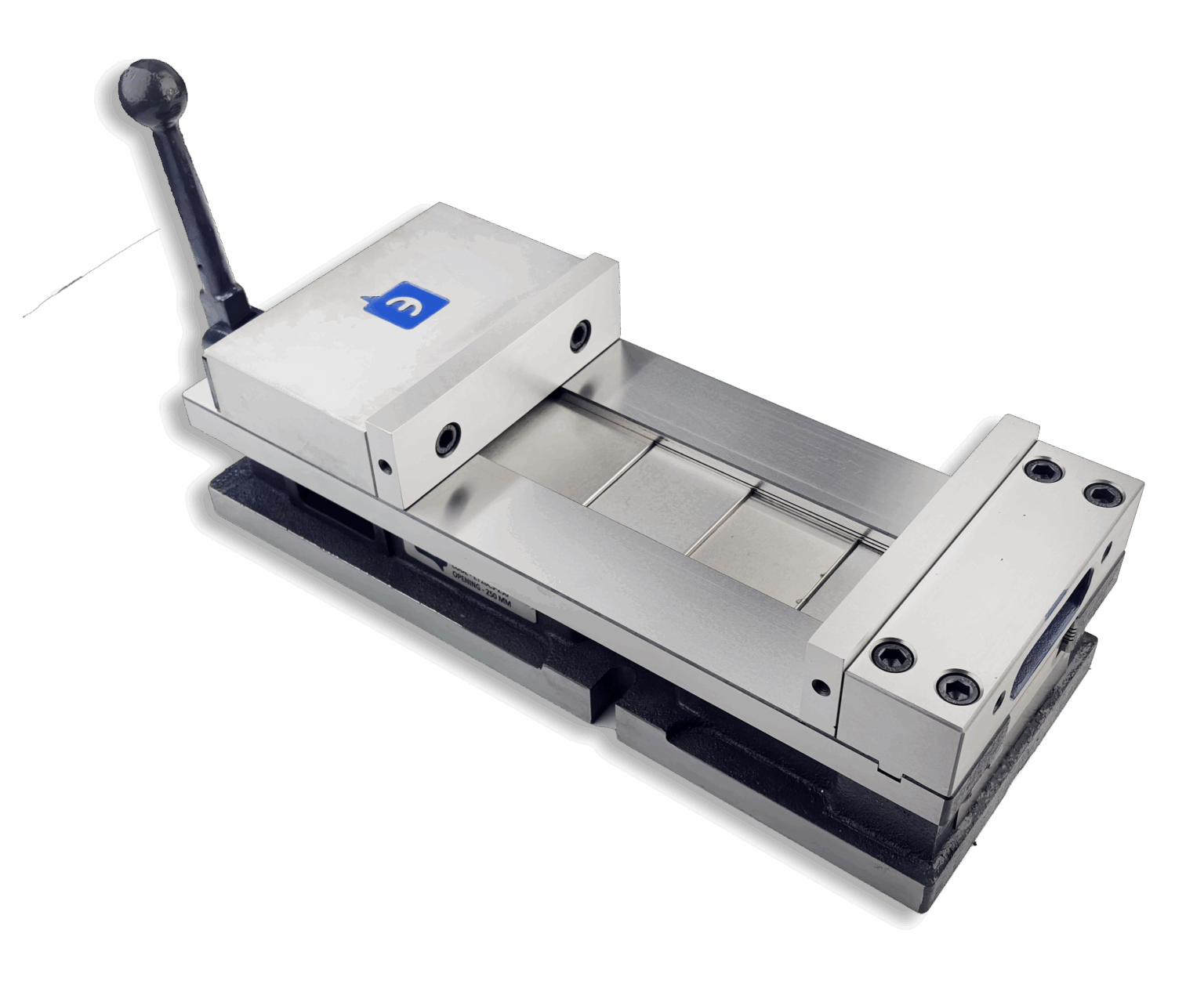

Wirecut Vise WCP4

The Wirecut Vise WCP4 is catalogue product 27 in Engeetech’s current wirecut vise series. Brochure-listed reference data includes Base width 38 mm, Jaw width 38 mm, Opening 155 mm. Share the machine, component and application details with the technical team to confirm suitability and quotation requirements.

Wirecut Vise WCP4 is part of Engeetech’s wirecut vise series for wire EDM and small-part precision workholding. Technical selection should be confirmed against the machine interface, component geometry, required opening and the intended machining process.

Technical reference: Engeetech Final Brochure, catalogue product 27. Contact the Engeetech team for current availability and quotation support.

Wirecut Vise Series selection notes

Wirecut Vise series configuration
Compact jaw and opening options
Hardened steel specification listed in the brochure

Catalogue Number	27
Series	Wirecut Vise Series
Reference	Engeetech Final Brochure
Base Width	38 mm
Jaw Width	38 mm
Opening	155 mm
Full Length	249 mm
Full Height	106 mm
Bed Length	245 mm
Vise Bed Height	73 mm
Jaw Height	33 mm
Accuracy	0.02/100 mm
Material	Hardened steel; body HRC 54-56
Weight	7.1 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

Wire EDM workholding
Small precision components
Tool and die machining
Repeatable setups for fine-feature parts
