Precision Modular Vice PM 1 for CNC

Precision Modular Vice PM 1 for CNC Workholding

Precision Modular Vice PM 1 (catalogue model 03) has a 100 mm jaw width and 100 mm opening for flexible CNC workholding. Share your machine and component details with Engeetech for technical quotation.

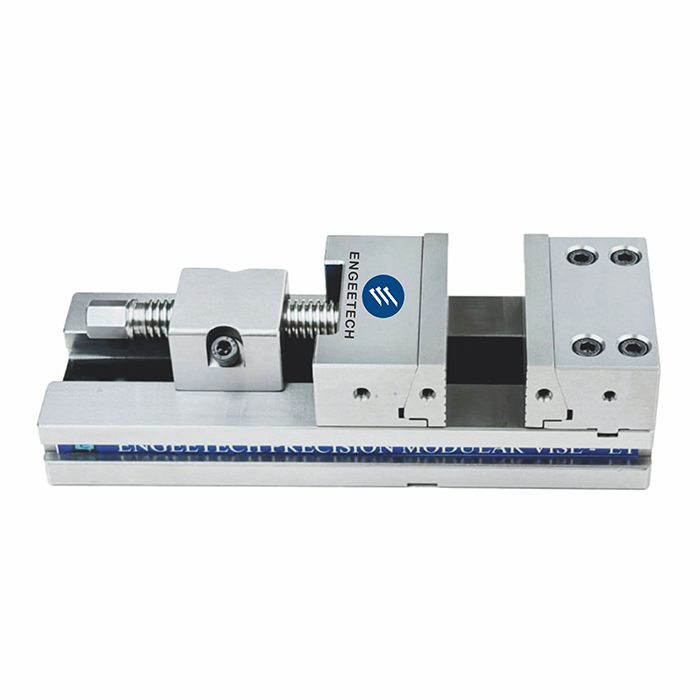

Precision Modular Vice PM 1 (also listed as a precision modular vise) is Engeetech catalogue model 03 for flexible CNC workholding. It has a 100 mm jaw width and 100 mm opening; confirm the machine interface, component geometry and setup requirements before quotation.

Use this modular vise for CNC milling, tool and die machining, prototypes and low-volume work where setup changes are frequent. Contact Engeetech with your machine and component details for technical selection and an RFQ.

Modular Vise Series selection notes

Modular vise platform listed in the Engeetech brochure
Multiple size and opening options across the series
Brochure dimensions available for technical review

Catalogue Number	03
Series	Modular Vise Series
Reference	Engeetech Final Brochure
Base Width	100 mm
Jaw Width	100 mm
Opening	100 mm
Full Length	329 mm
Full Height	87 mm
Bed Length	270 mm
Vise Bed Height	45 mm
Jaw Height	42 mm
Accuracy	0.02/100 mm
Material	Hardened steel; body HRC 54-56
Weight	11.7 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

CNC milling and flexible production setups
Tool and die machining
Prototype and low-volume component work
Multi-operation workholding where setup changes are frequent
