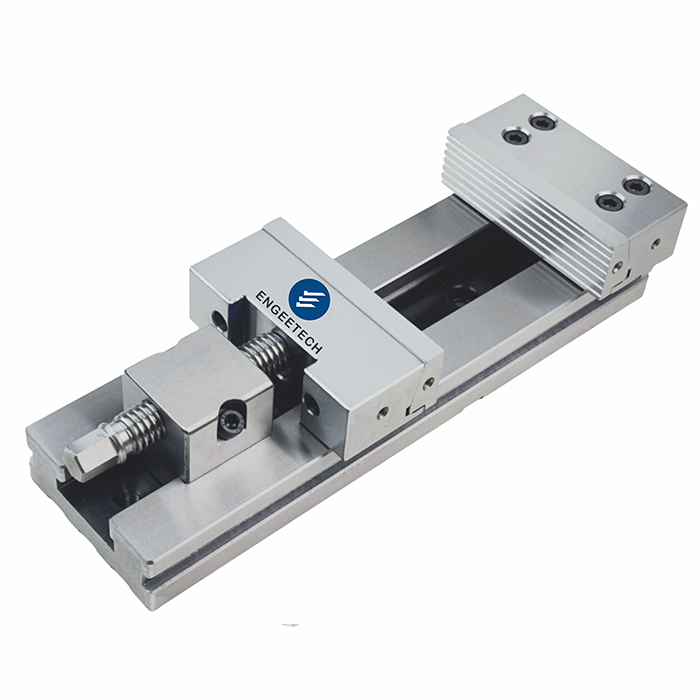

Precision Modular Vice PM 2 for CNC

Precision Modular Vice PM 2 for CNC Workholding

The Precision Modular Vise PM 2 is catalogue product 04 in Engeetech’s current modular vise series. Brochure-listed reference data includes Base width 100 mm, Jaw width 100 mm, Opening 150 mm. Share the machine, component and application details with the technical team to confirm suitability and quotation requirements.

Precision Modular Vise PM 2 is part of Engeetech’s modular vise series for flexible CNC workholding and varied component setups. Technical selection should be confirmed against the machine interface, component geometry, required opening and the intended machining process.

Technical reference: Engeetech Final Brochure, catalogue product 04. Contact the Engeetech team for current availability and quotation support.

Modular Vise Series selection notes

Modular vise platform listed in the Engeetech brochure
Multiple size and opening options across the series
Brochure dimensions available for technical review

Catalogue Number	04
Series	Modular Vise Series
Reference	Engeetech Final Brochure
Base Width	100 mm
Jaw Width	100 mm
Opening	150 mm
Full Length	379 mm
Full Height	87 mm
Bed Length	320 mm
Vise Bed Height	45 mm
Jaw Height	42 mm
Accuracy	0.02/100 mm
Material	Hardened steel; body HRC 54-56
Weight	13.7 kg (approx.)

Choose a workholding platform around the way your machine actually runs. These applications are the starting point for selecting the right Engeetech configuration.

CNC milling and flexible production setups
Tool and die machining
Prototype and low-volume component work
Multi-operation workholding where setup changes are frequent
